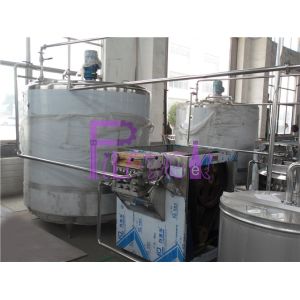

Milk / Juice Instantaneous Sterilizer Ultra High Temperature
Sterilization Machine
Quick Detail:
1. Capacity: 1000L/H
2. Heating type: steam heating
3. Used for juice, milk, and beverage for instantaneous sterilizer
4. Coil type structure
5. Sterilizing temperature: 115-135 (℃)
Description:
Main machine:
This ultra high temperature instantaneous sterilizer is suitable
for sterilizing the liquid material, such as juice, fresh milk,
fruit milk, tea, wine, soybean milk and Chinese medicine, as well
as the sticky material (for example, sweat condensed milk). It is
with coil tube type heating system, heated by steam, so here you
need to set with a steam boiler or other machine for supplying
needed steam.
Our factory adopts advanced stainless steel 304 welding technology
abroad, selecting the fine polished stainless steel tube, which has
good appearance and sterilizing effect. .
Main structure and work principle

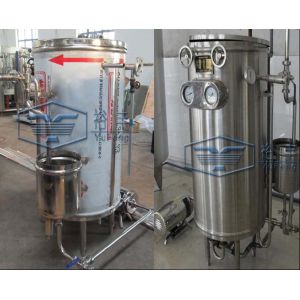

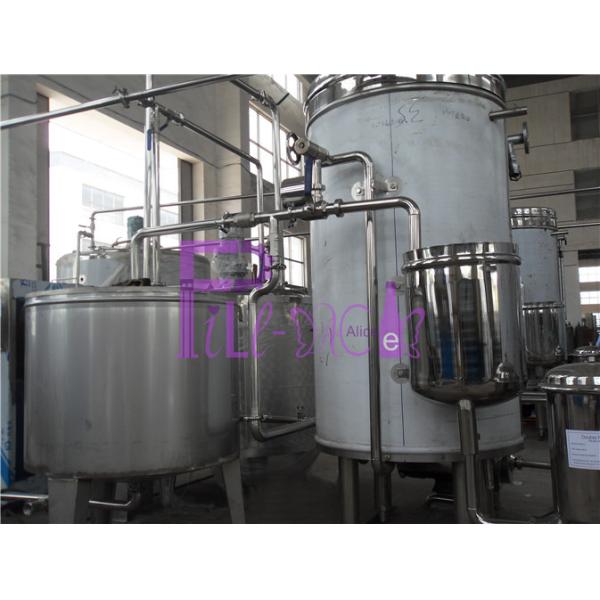

Ultra-high temperature sterilizer structure: the main machine
contains a pressure vessel-high temperature bucket, used as a
pressure steam container. The main set of barrel is thread-shaped
double-pipe, used as the hot and cold exchange for inlet and outlet
materials; The main set inside barrel is spiral tube, used as
indirect heating.
Sterilization process : Materials through the feeding pump into the
outer flow channel of double coiled pipe , the material from inside
with indirect heating for preheat, when materials goes into the
high temperature coiled pipe set in the high temperature barrel ,
due to the steam in the barrel is indirect heated to be a needed
sterilization temperature, and insulates in the single pipe out of
barrel to kill the materials bacteria, when steam is back to the
double coiled pipe, the material flows to the inside flow channel
and cooled by the outside material, which makes the outlet
material’s temperature decline significantly ( Ordinary lower than
65℃). If it needs to raise or lower the outlet material temperature
in the process, you can enable Angle Type Globe Valve, made it get
through to hot source (heat steam) or cold source (water or ice
water) to go into the outer layer flow channel in the bottom of the
double casing.
Throttle valve can be adjusted, in one hand, it raises the
material’s boiling point to avoid the vaporization kept under a
certain pressure; In the other hand, it is used for regulating the
flow, material is final out from the three-way cock. The bottom of
spiral plug is connected with the spiral coil, its outlet is with
storage tank. When required, operator could rotary the spiral coil
direct to the overflow pipe. The top of feeding three-way cock is
connected through to the storage tank and bottom is connected
through to the material supply pipe.
When you need to increase capacity, please remove the "U"-shaped
tube and connect with a centrifugal pump. This machine is a manual
control sterilizer and sterilization temperature is adjusted by the
Angle Type Globe Valve .The discharge temperature can be changed by
the Angle Type Globe Valve. Steam pressure gauge, sterilization
temperature table and discharge temperature table are all installed
on the host.
Main Technology data:
| Treatment Capacity | 1000L/H |
| Sterilizing Temperature | 115-135 (℃) |
| Inlet temperature | ＜65℃ |
| Outlet Temperature | ＜40℃ |
| Heating time | 4-6s |
| Steam Pressure | ＜0.78 Mpa |
| Steam consumption | ＜0.15kg/L material |
| Material | SUS304 |
| Area (m2) | 0.9 |
| Motor Power | 1.5kw |
| Overall Dimensions | 1250*900*1650 (mm) |
| Weight | 200 kg |
