    Steam Jacket Heating Juice Processing Equipment With Agitator

    Ask Lasest Price
    Brand Name : FillPack
    Model Number : 2000LPH
    Certification : CE,ISO
    Price : $2,590.00/set
    Payment Terms : 30% T/T deposit, 70% before shipment
    Supply Ability : 50 sets/month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

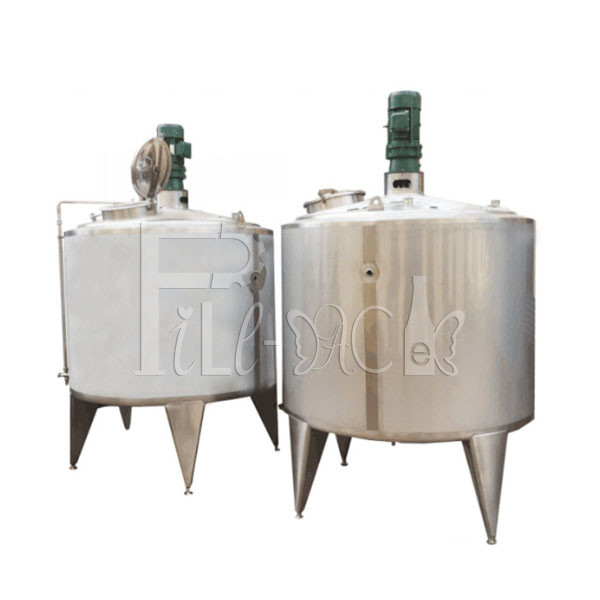

    Steam Jacket Heating Juice Processing Equipment With Agitator

    Factory Direct Sale Steam Jacket Heating Liquid Mixer Mixing Tank With Agitator


    Steam heating jacket mixing tank application:

    This steam heating jacket mixing tank is used to mixing material like juice, milk, drink, chemicals, cosmetics and so on. It is with electric mixer and the motor could be regulated. It adopts the high quality of SUS304 material and meet with the food grade. It is easy to operate and washing. Also it could be set with automatic CIP spraying head for more easy washing. the heating method, we use steam heating. Steam heating jacket mixing tank including: 1, quick open manhole at top 2, anti foaming liquid inlet, 3, CIP cleaning head, 4, dust proof respirator, 5, glass lever gauge 6, sampling valve 7, anti rotational flow outlet 8, low liquid lever sensor 9, height adjustable stand 10, Inclined oar agitator

    Steam heating jacket mixing tank parameter:

    Capacity
    500LPH
    1000LPH
    2000LPH
    3000LPH
    4000LPH
    5000LPH
    6000LPH
    Material
    SUS304
    Pressure
    0.6Mpa
    Structure
    inner layer+middle layer+insulation+outer layer
    Heating way
    Steam heating
    Motor power (kw)
    0.75
    0.75
    1.1
    1.5
    2.2
    3
    6
    Motor speed (rpm)
    35
    Inner thickness(mm)
    3
    Middle layer
    thickness(mm)
    1.5
    Insulation thickness(mm)
    50
    Outer thickness(mm)
    1.5
    Insulation material
    Polyurethane foam
    Manhole diameter(mm)
    400
    Diameter of inlet&outlet(mm)
    38
    38
    38
    38
    38
    51
    51
    Dimension of tank body(mm)
    800*1000
    1100*1220
    1450*1200
    1600*1500
    1600*2000
    1660*2300
    1800*2400
    Total Height(mm)
    2100
    2420
    2420
    2700
    2900
    3200
    3300
    Weight(KG)
    310
    400
    600
    700
    800
    900
    950
