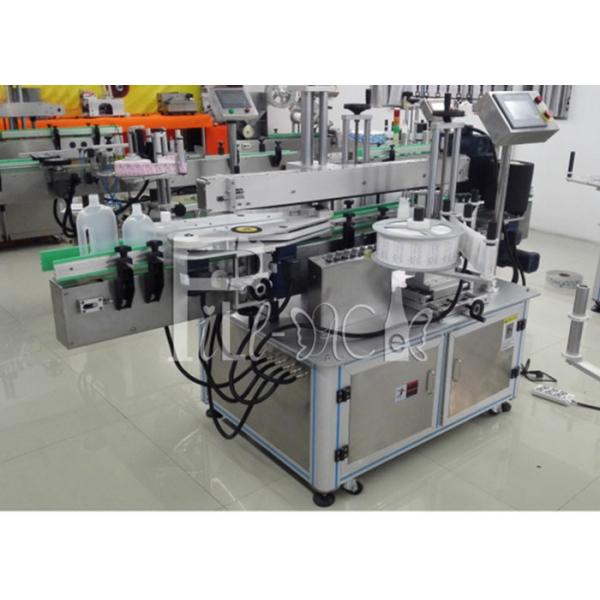

    Self Adhesive PET / Plastic Sticker Square Flat Bottle Labeling / Labeler Machine / Equipment / Plant / System

    Ask Lasest Price
    Brand Name : Fill Pack
    Model Number : T-751-S
    Certification : CE,ISO
    Price : USD$3500-5500/set for glass bottle labeling machine
    Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram
    Supply Ability : 15 sets/month
    Delivery Time : 5 - 15days
    • Product Details
    • Company Profile

    Self Adhesive PET / Plastic Sticker Square Flat Bottle Labeling / Labeler Machine / Equipment / Plant / System

    Description of Flat/Square bottle Single side adhesive labeling machine

    >>>Basic using:
    The machine can simultaneously achieve single-sided labeling and labeling features to satisfy the flat bottles, square bottles and bottle shaped single-sided, widely used cosmetics industry, daily chemical industry.
    >>>Application:
    ★ For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
    ★ Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh wine.
    ★ Applicable products:Flat bottles, requires the side flat attached label.
    ★ Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.
    >>>Working Process:
    ★ Procedure:
    1, put the product (which can be accessed line)
    2, Product delivery
    3, Products minutes away
    4,Product Guide
    5,Labeling (device automatically)
    6, Cover Standard
    7, collect the labeling products.
    ★ Core Working principle: The sensor detects the flat bottle after bottle to return the signal to the labeling control system, the control system in place to control the motor sends label and attached flat bottle labeling products subject position, flat bottle label products through the overlying unit, the label affixed to the product coated on a label attached to the action is completed.
    No
    Item
    Parameter
    1
    Suitable label length (mm)
    20mm ~ 200mm
    2
    Applicable Label width (backing paper width / mm)
    20mm ~ 150mm
    3
    Applicable Product size (for flat bottle):
    Length (transport direction) 20mm ~ 250mm Width (transport width direction): 30mm ~ 90mm Height: 60mm ~ 280mm
    4
    Applicable standard roll diameter
    φ280mm
    5
    Applicable standard roll diameter
    φ76mm
    6
    Labeling accuracy (mm)
    ± 1mm
    7
    The standard speed (m / min)
    Stepping: 5 ~ 19m/min
    8
    Labeling speed (pcs / min)
    Stepping: 30 ~ 50pcs/min
    9
    Conveyor speed (pcs / min)
    18m/min
    10
    Weight (kg)
    about 350kg
    11
    Power (W)
    1000W (traction stepper)
    12
    Device dimensions (mm) (L × W × H)
    2400mm × 1450mm × 1600mm
    If you need shrink sleeve labeling machine, cold glue labeling machine or OPP hot glue labeling machine, please check them on our website or contact the sales consultant directly.
    Please find the contact information at contact us.
